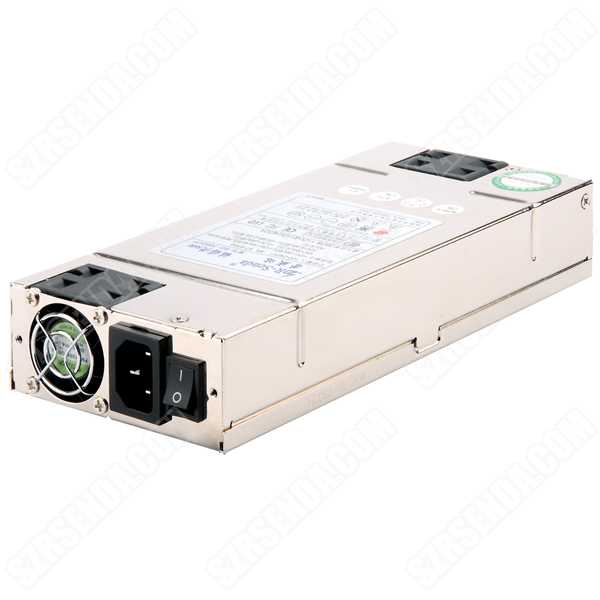

SD-3560UP

Hi, how can I help you?Chat Now!

  • Model Number：   SD-3560UP
  • Rated Power：   400W
  • Application：  Server, Industrial PC,Network gateway, Firewall, etc.
  • Fan Type：  4cm*2
  • Power Factor：  Active PFC
  • Input Voltage：  100-240VAC
  • High efficiency：  75 %
  • Dimention：  220x100x40mm
  • Packaging Details：  10 PCS/CTN
  • Carton Dimention：  580x295x185mm

10 Other Products in the same category

Product Features

*Comply with 1U Ver2.3, Rated output power: 400W (560W Max)
* High efficiency & Low ripple & noise.
*100% burin-in test & hi-pot test
*AC input full range
*Output over voltage protection
*Short circuit protection on all outputs
*Internal 4CM FAN*2 *AC input :100-240Vac/47-63Hz (wide voltage)
*With EMI and with temperature control
*Interfaces: 20+4Pin for M/B,4+4pin for 12VCPU*2,SATA*3,4Pin for HDD*3


Product Details

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (4+4-Pin) x 1
    • 4-Pin peripheral cable x 3
    • SATA cable x 3
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4+4-Pin*1

    • HDD power Cable

      SATA*3

    • HDD power Cable

      4-Pin*3\4-Pin*1

Parameters
  • AC Input: 100-240Vac，6A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 28A
    • +5V(Red):
    • 35A
    • +12V1(Yellow):
    • 18A
    • +12V2(Yellow):
    • 14A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2.5A
    • -5V(White):
    • -A
    Output power: Max Power：560W，Rated Power：400W
Parameters
    • PFC: Active
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 9500RMP(+/-10%)
      4CM Fan
    • Noise: 30dB at 9500rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1
